Product Specification

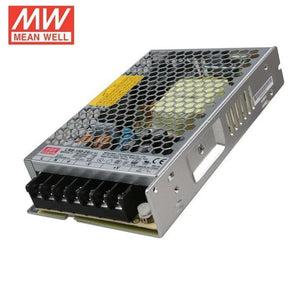

Power Supply Type: Mean Well Switching Power Supply'sInput Voltage AC: 110/220VOutput Voltage DC: 24 VDC Output Power : 1.5A35Watts - 83.5A2000WWarranty: 3 yearsAverage working no trouble: ＞50, 000 hoursWorking temperature: - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)Storage temperature: - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)Height above sea level: ≦2000M Connection Type: Screw Terminals Input Frequency Range: 47 ~ 63 HzIP Rating: Non-Waterproof Built-in PFC Function: Yes PF>0.93 Fixed switching frequency at PFC:67KHz PWM: 134KHz Standards And Certifications: UL RecognizedUL Compliance Number: E183223Cooling method: Natural cooling air convection Overload protection: 105% - 150% rated power, automatic recoveryOver-voltage protection: 105% - 150% of the rated voltageProtection type: Shut off o/p voltage, clamping by zaner diodeOver Temperature: U1 Tj 140℃ typically (U1) detect on main control ICProtection type: shut down o/p voltage, recovers automatically after temperature goes down.
